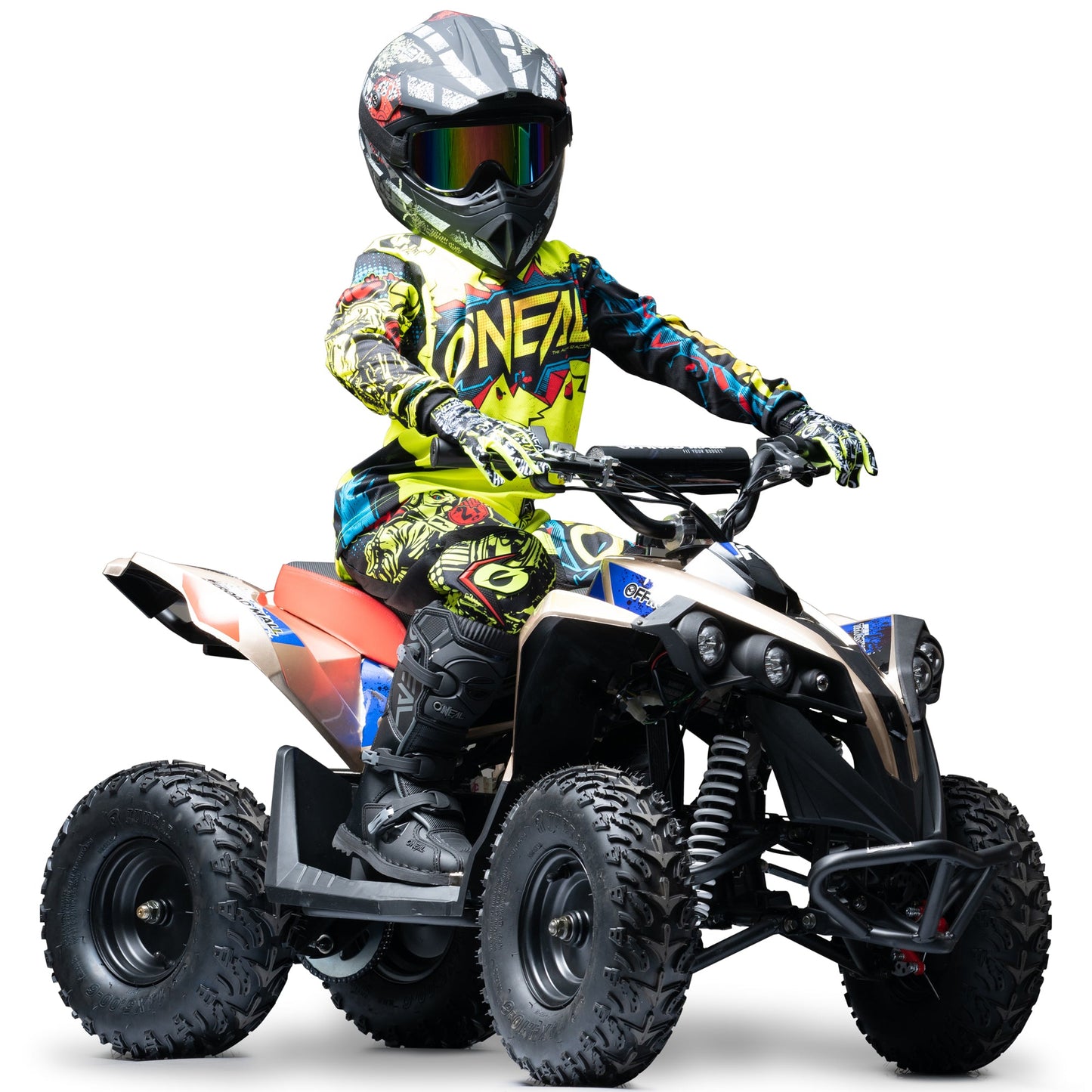

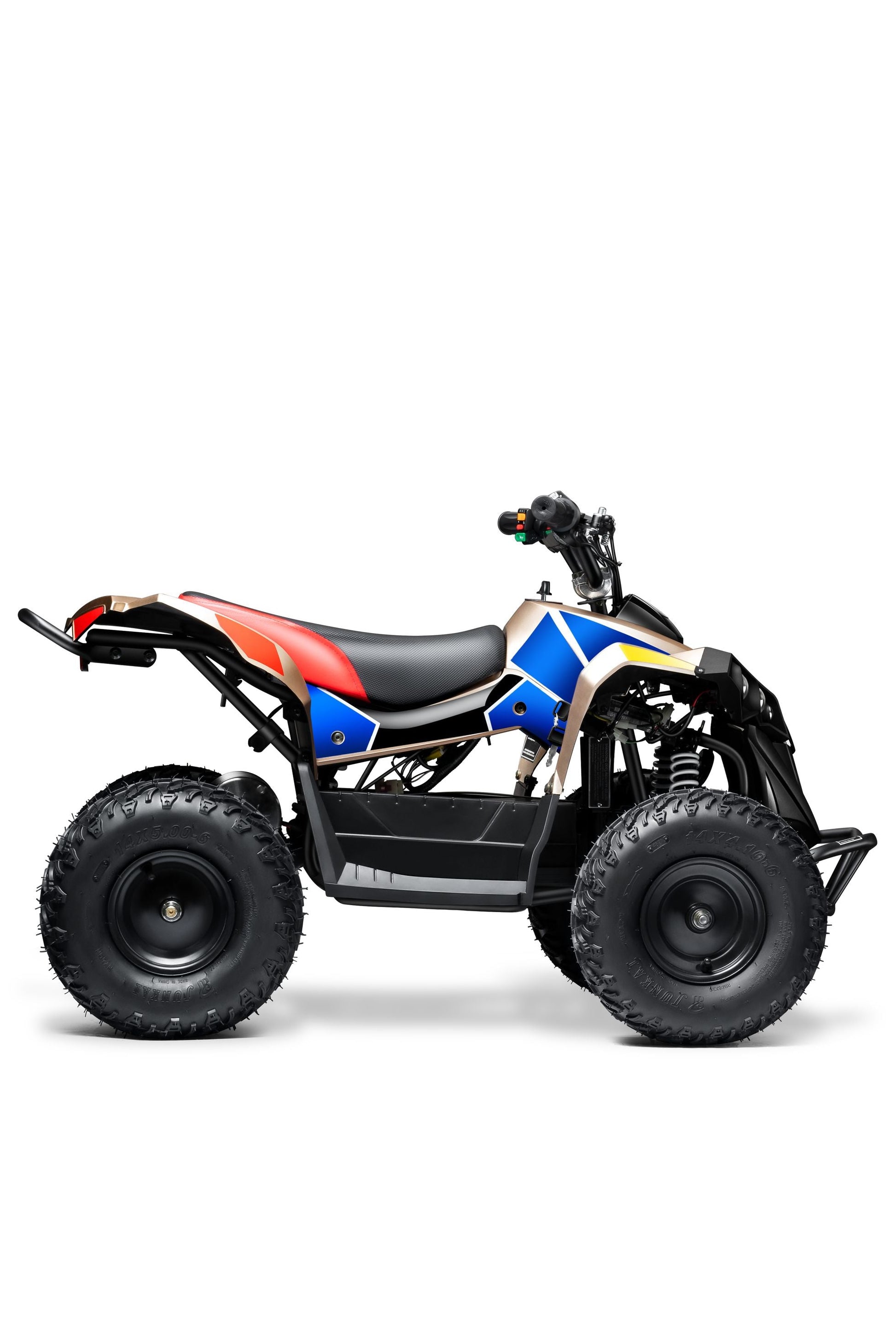

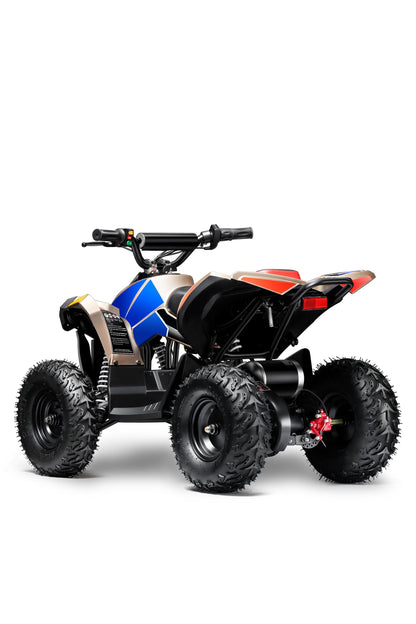

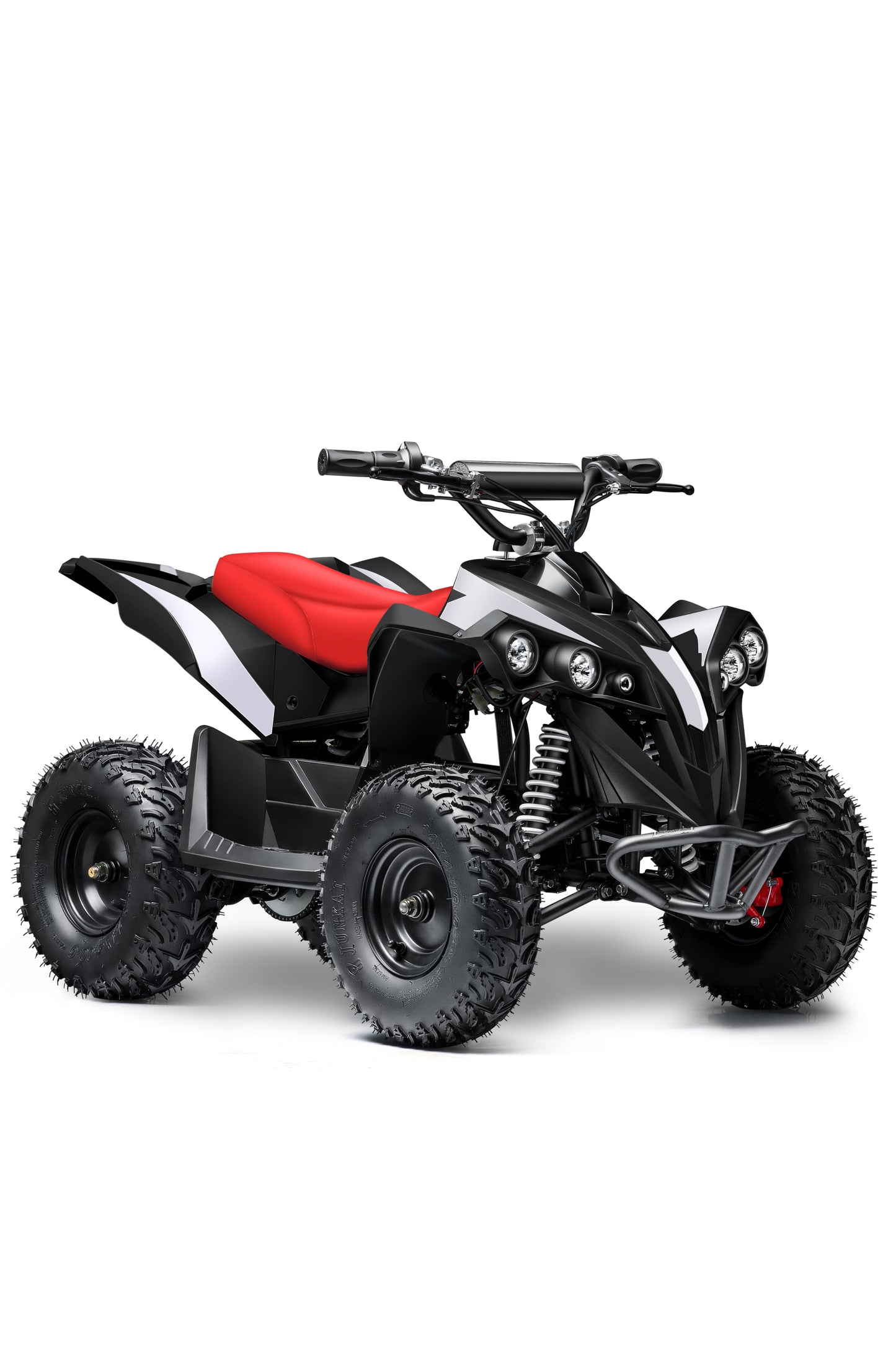

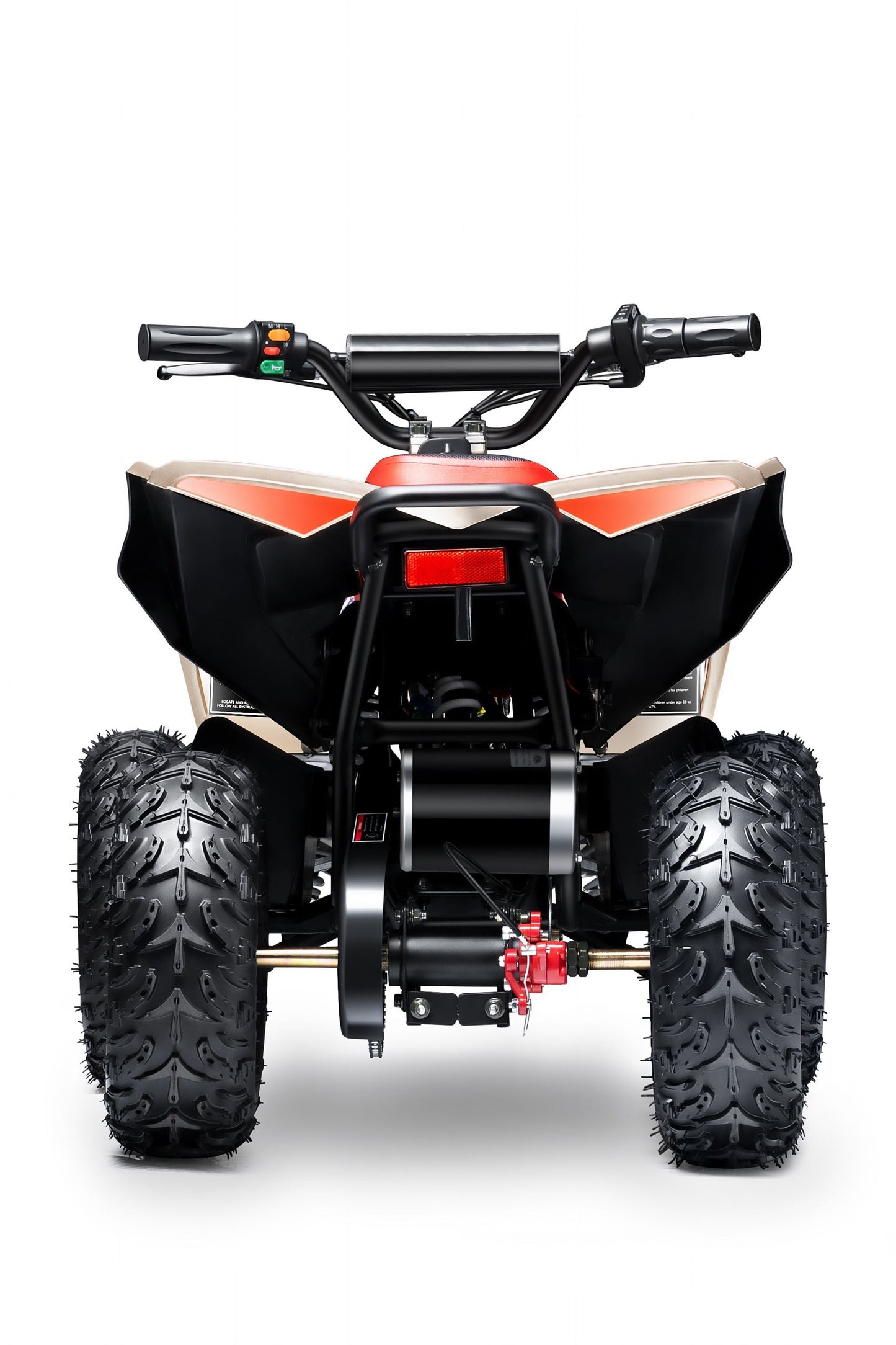

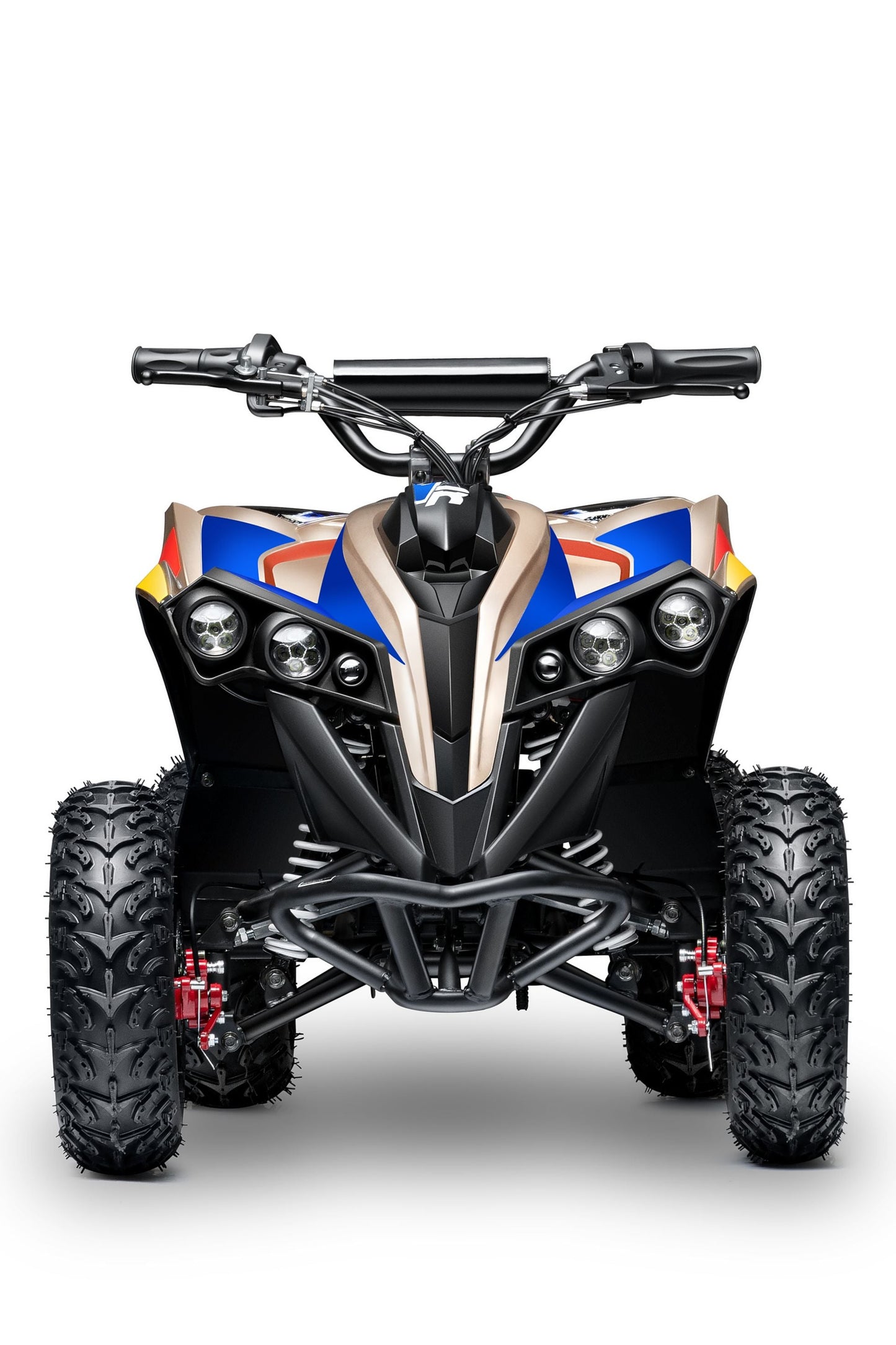

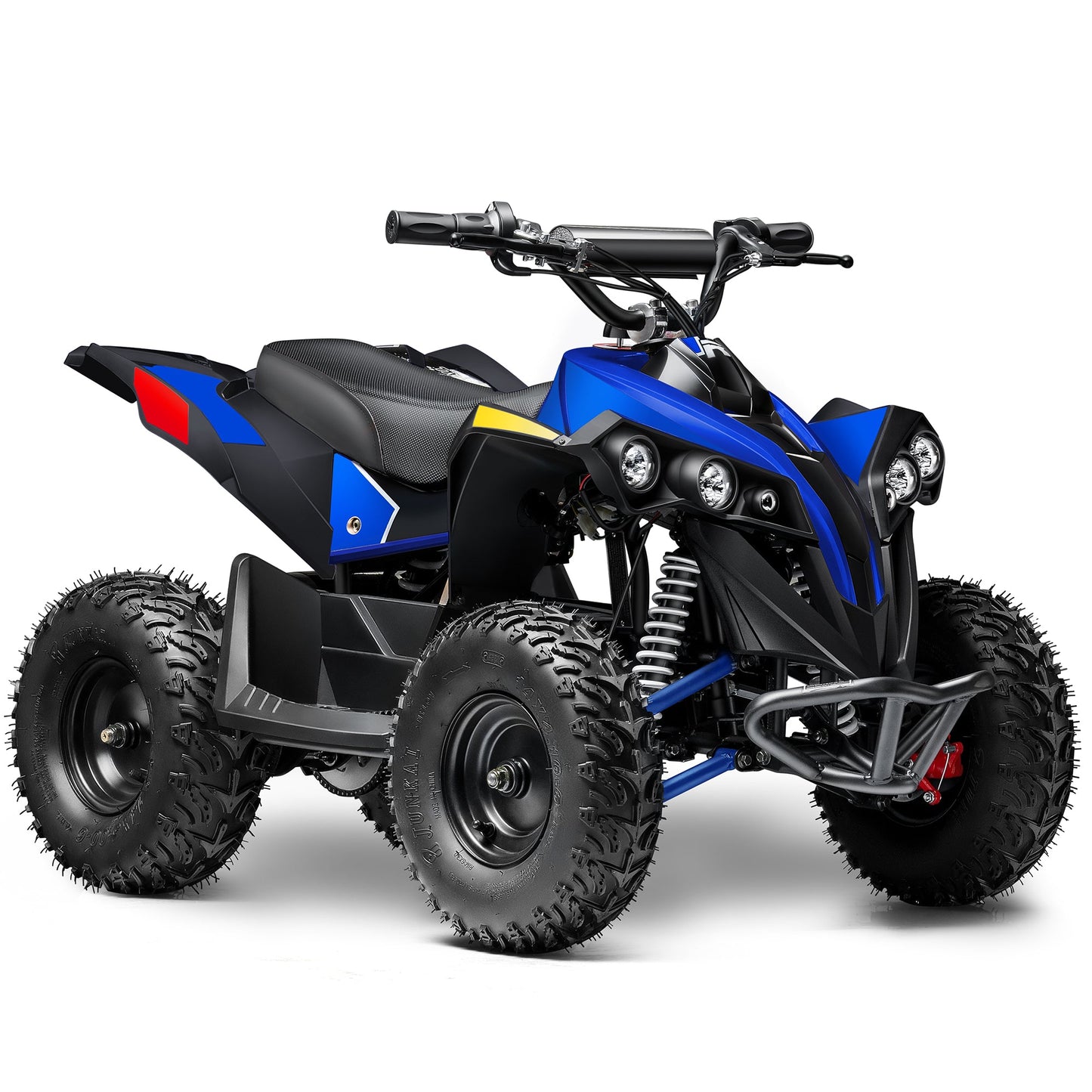

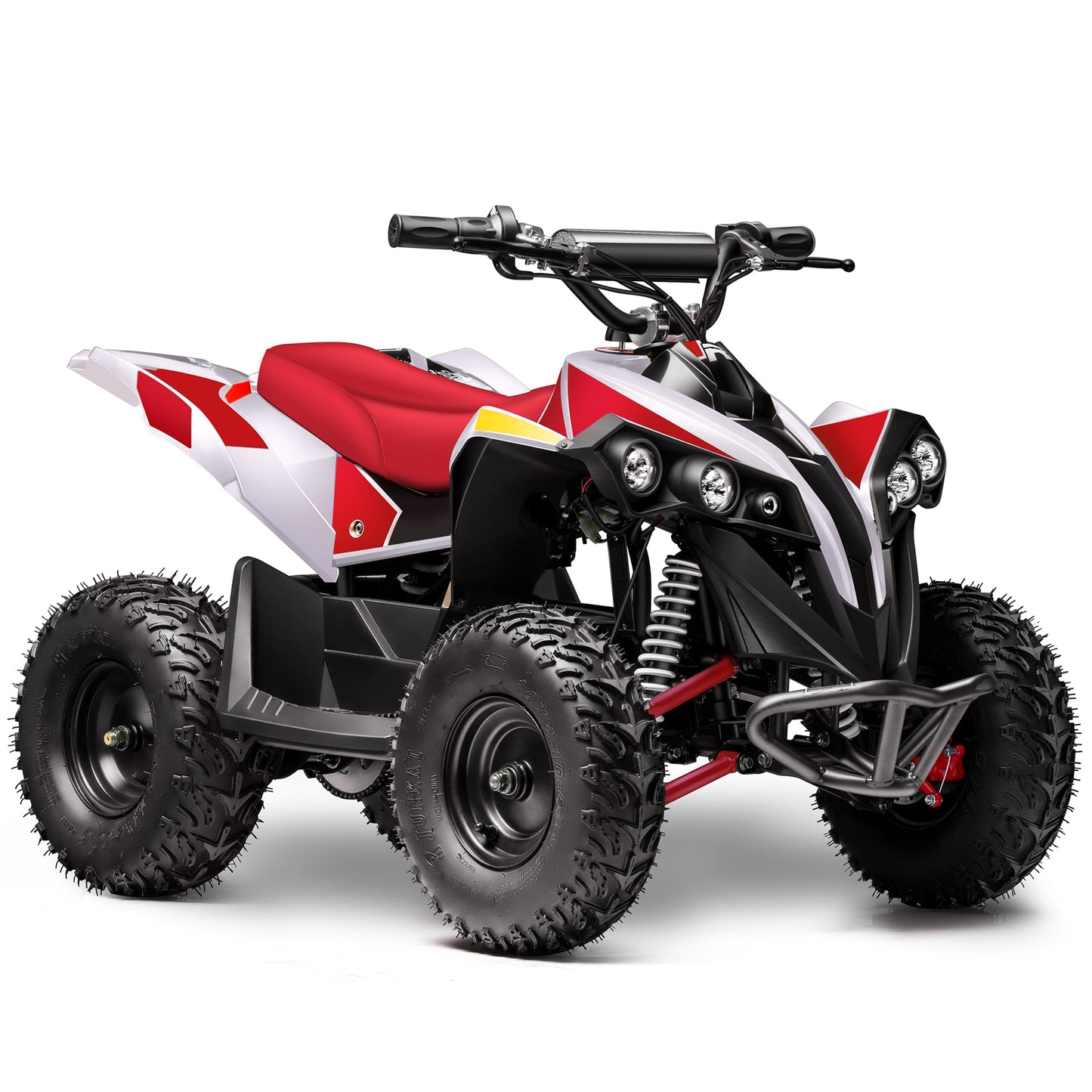

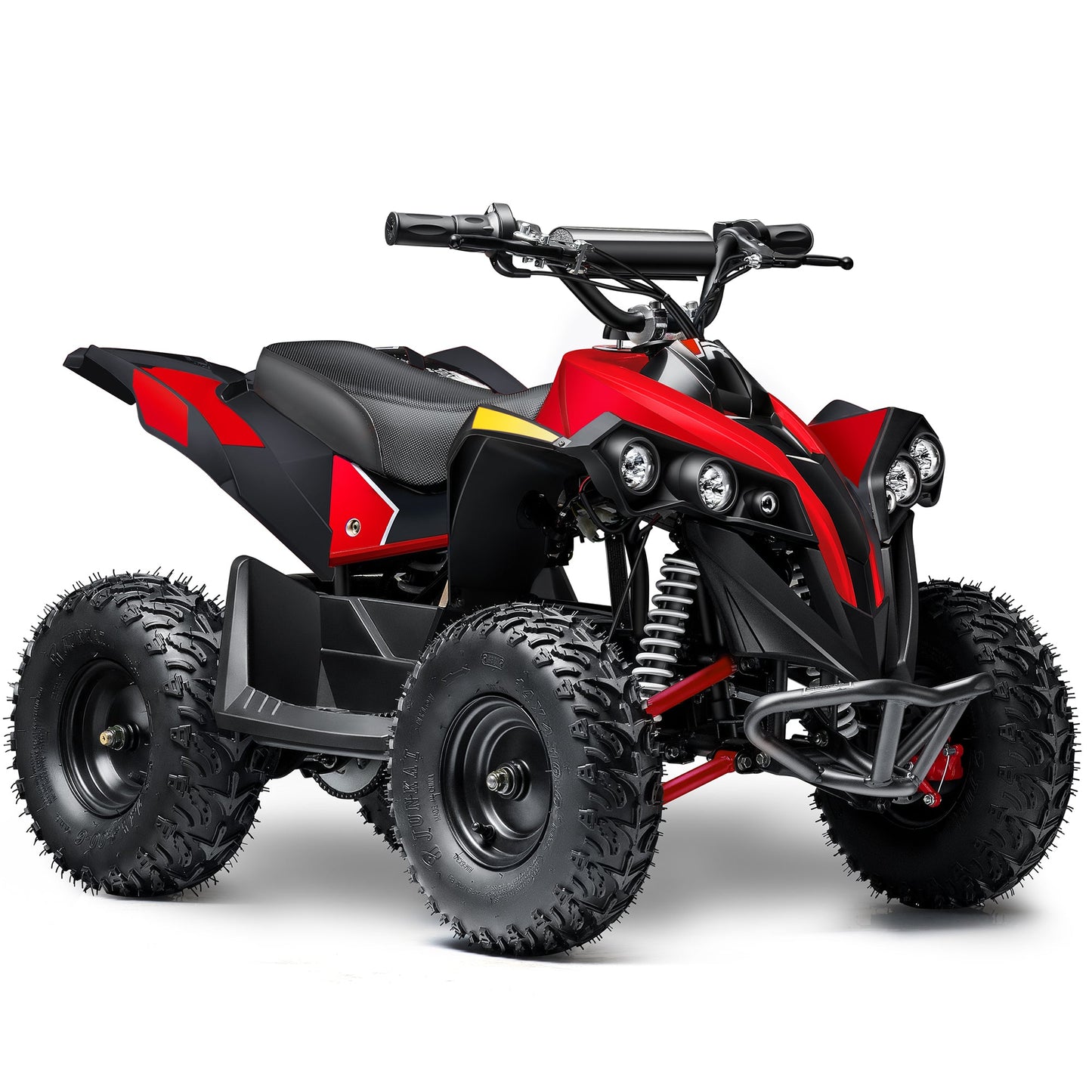

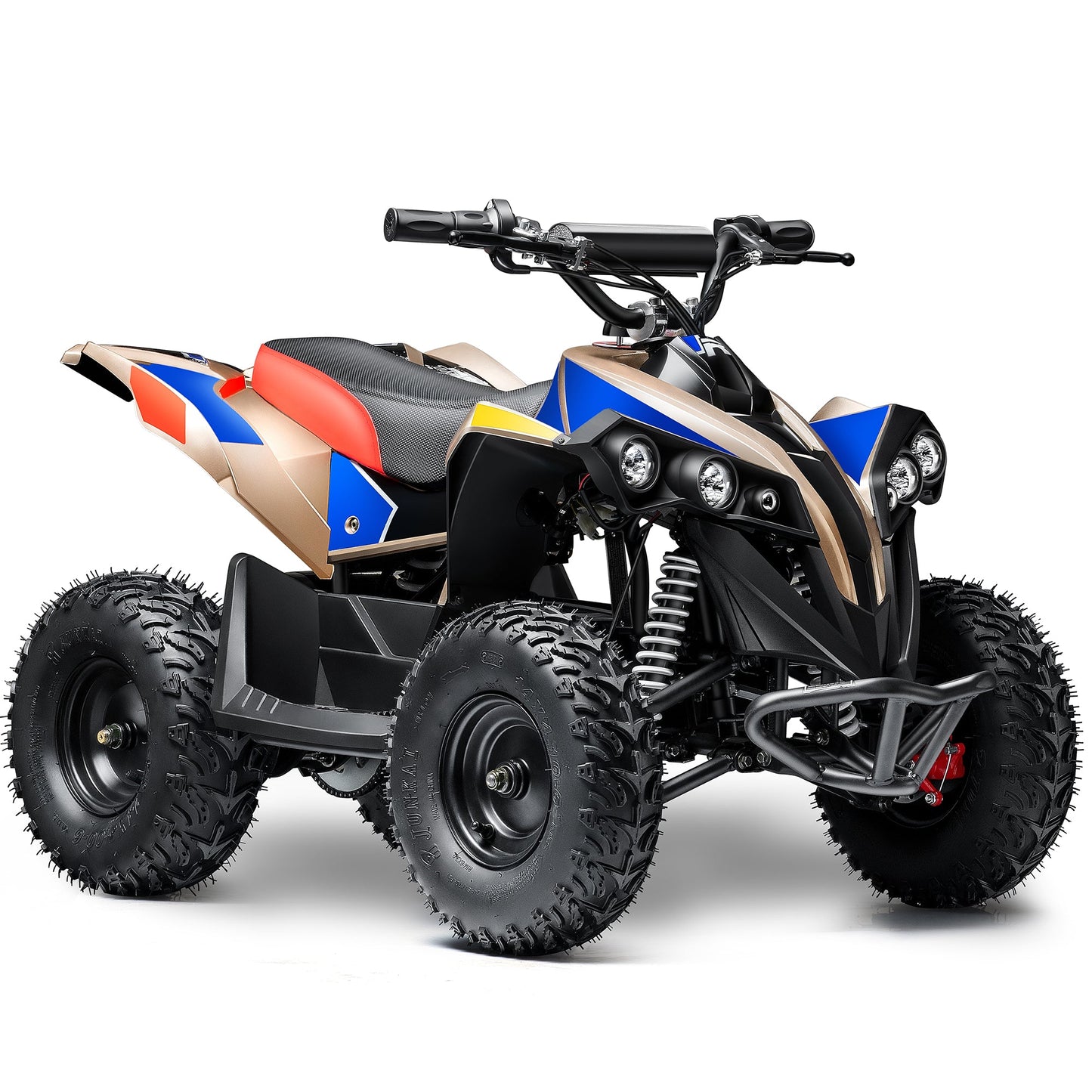

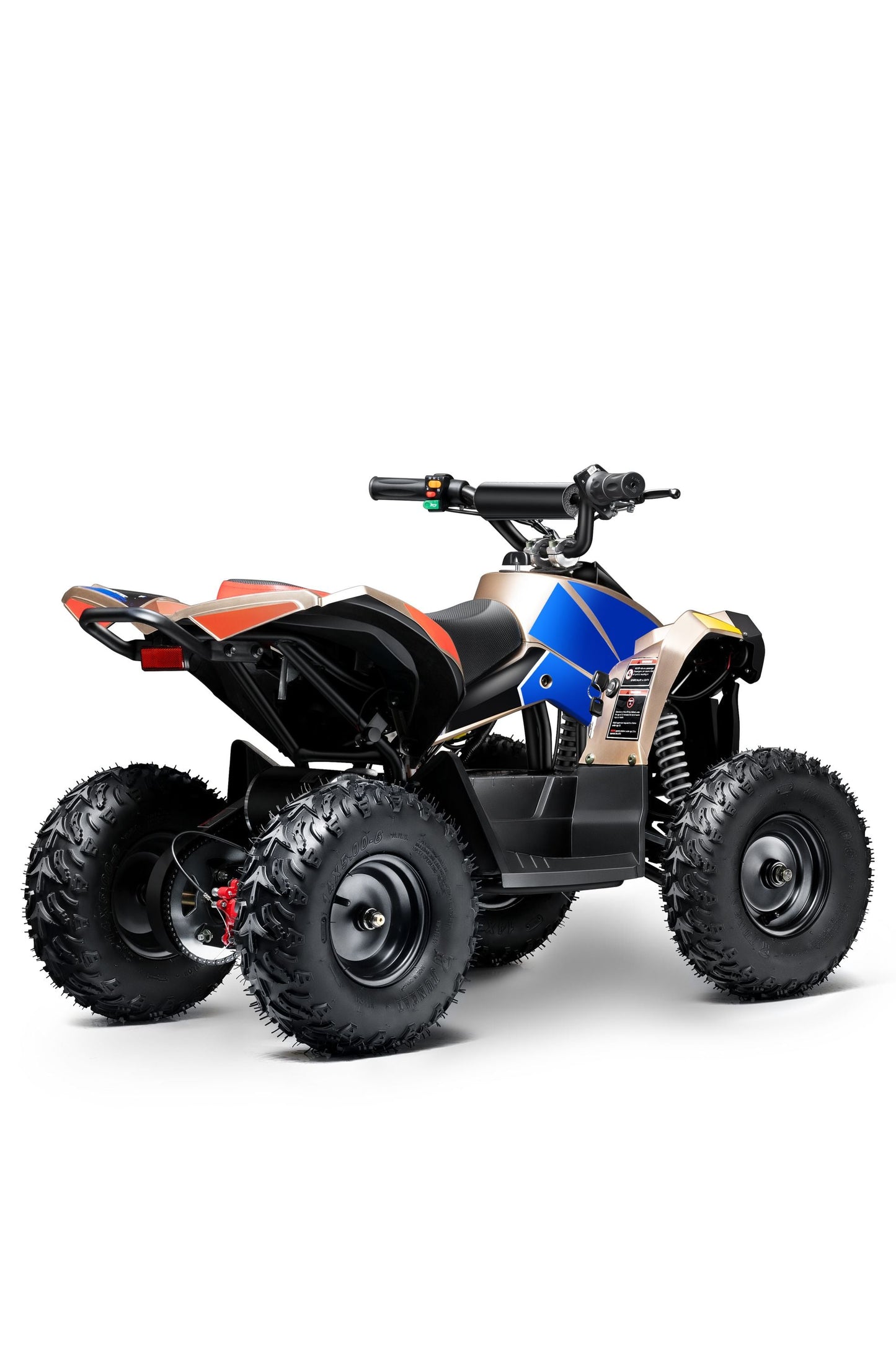

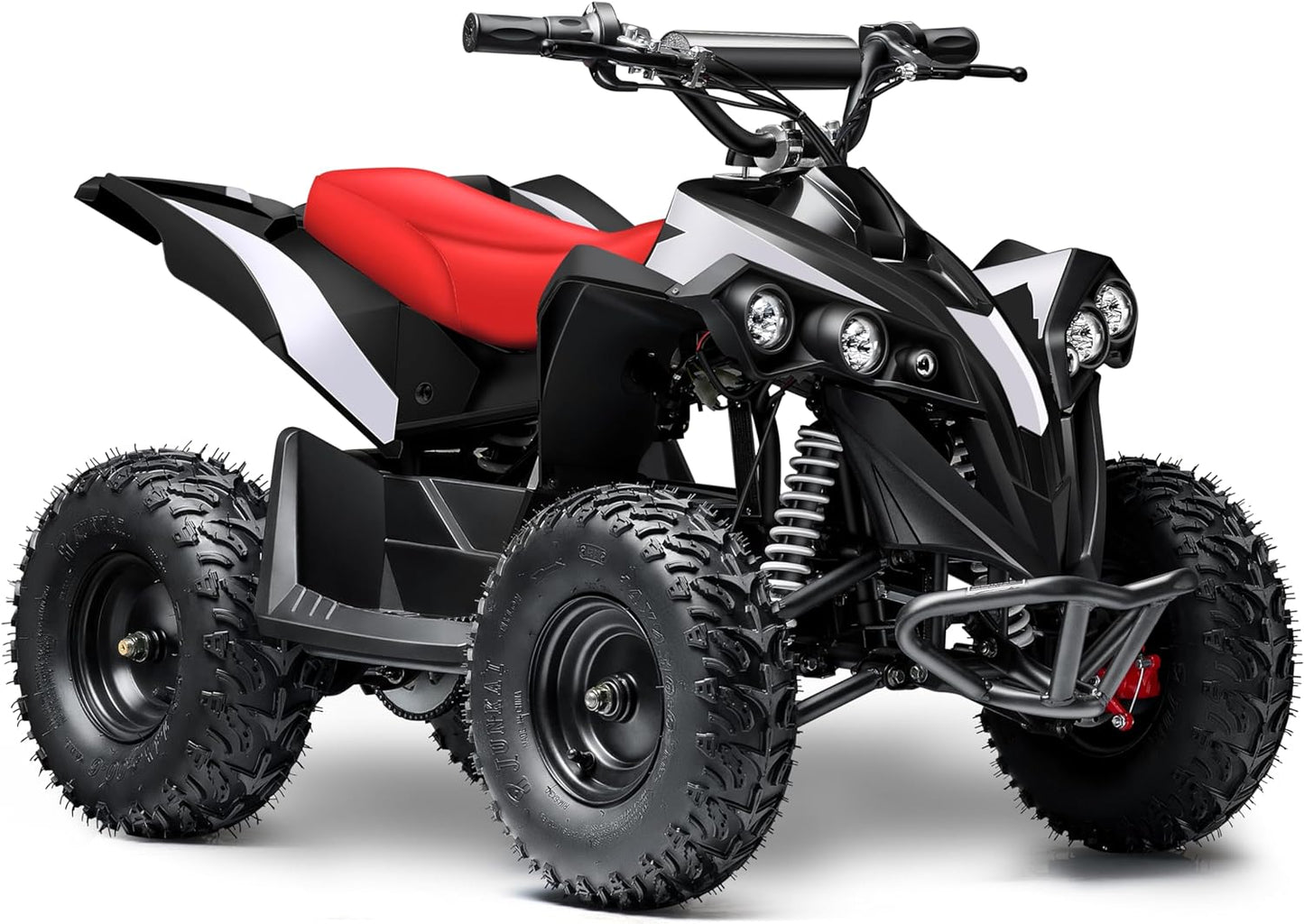

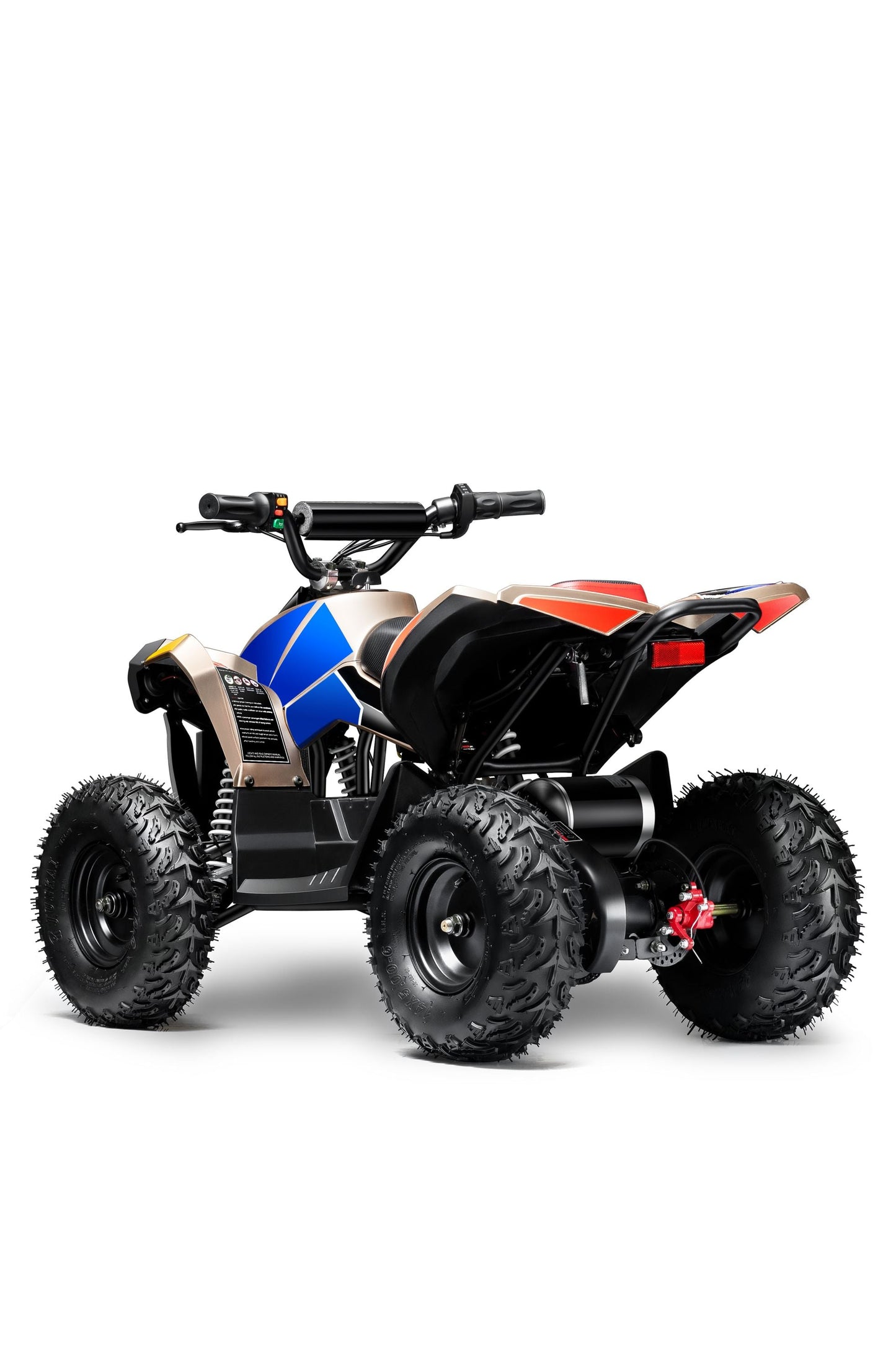

Electric ATV Quad 4 Wheeler 36V with Off-Road Tires - 220lbs Weight Capacity - Tested and Fully Assembled

Electric ATV Quad 4 Wheeler 36V with Off-Road Tires - 220lbs Weight Capacity - Tested and Fully Assembled

Regular price $1,098.00 USD
Regular price $1,398.00 USD Sale price $1,098.00 USD
Sale Sold out
Color
  • 【Assembled & Tested】ATV comes 95% assembled (Front bumper is not assembled). You don't have to be worried about the complex assembly. Each ATV will be tested carefully before shipping. We ensure every customer can use it safely.
  • 【Electric Control System】F-N-R with speed regulation (H-M-L) electric controlled integral gear sets (Forward, Neutral, Reverse, Speed of High, Medium, Low). With reverse gear, it could be a great help for riders much easier to control and handle
  • 【UL Approved】This ATV passed strict standard and meet UL requirements. The size of ATV is 46.85"×27.76"×30.12" and the carton size is 44.88"×23.43"×20.47".
  • 【Powerful & Stable Engine】This high-torque air cooled motor is powerful enough to bring you a good riding experience. Upgraded motor controller can protect the motor from overcurrent, overheating and blocking, which makes the longevity longer than others.
  • 【Rocky Hard Terrain Tubeless Tires】Air-filled (10PSI) strong rubber tubeless off road tires will help you conquer any terrain. Bring you smooth riding experience.
ATV Dimension 46.85”x27.76”x30.12”
Carton Dimension 44.88”x23.43”x20.47”
Max Loading 220lbs
Net Weight 118lbs
Gross Weight 136lbs
Seat Height 22.24”
Ground Clearance(Min) 3.74”+
Turning Diameter(Min) 157.48”
Wheelbase 27.56”
Front Wheel Tracy 23.03”
Rear Wheel Tracy 17.72”
Motor Type Brush, DC
Rated Voltage 36V
Rated Power 1000W
Max Torque 3.3N.m/2800rpm
Cooling System Air Cooled
W./Reverse Gear Yes
Motor Model 1020G
Drive Train Chain Drive, Mid Rear Drive No Differential
Battery Cell Capacity Each Battery Cell 12V/15Ah
Total Battery Cells 3 Pcs
Input/Output Voltage 36V
Battery Maintenance Maintenance-Free AGM Gel Battery
Model TNE12-15
Battery Charger 36V, 1.6A, UL Listed
Gear F, N, R W./Speed Regulation ( H, M, L)
Speed Control Handle Bar Hill Speed Sensor Applied, 36V Rotate Mode
Rated Working Voltage 36V
Max Working Voltage 44V
Power Loss Protection 31.5V
Recharge Mileage 13-16 Miles (Fully Charged)
Max Speed 19mph+ (Depending on Riders Weight and Road Conditions)
Speed Could Be Limited to 5.59 Mph
Steering Gear Standard Limits Steering Wheel Left/Right ≤30°
Suspension/Front Traverse Double-arm, Independent Suspension
Suspension/Rear Longitudinal Swing Arm, Non-independent suspension
Brakes/Front Disc Brake, Dia 4.73”
Brakes/Rear Disc Brake, Dia 5.51”
Brakes Working Mode Front & Rear Mechanical Disc Brake, Rear Brake W./Parking
Tires and Rim/Front 14x4.10-6 10PSI, Off-road Tire, Steel Rim
Tires and Rim/Rear 14x5.00-6 10PSI, Off-road Tire, Steel Rim
